Holemaker Technology  |  SKU: 101035-0140  |  Barcode: 5060451529067

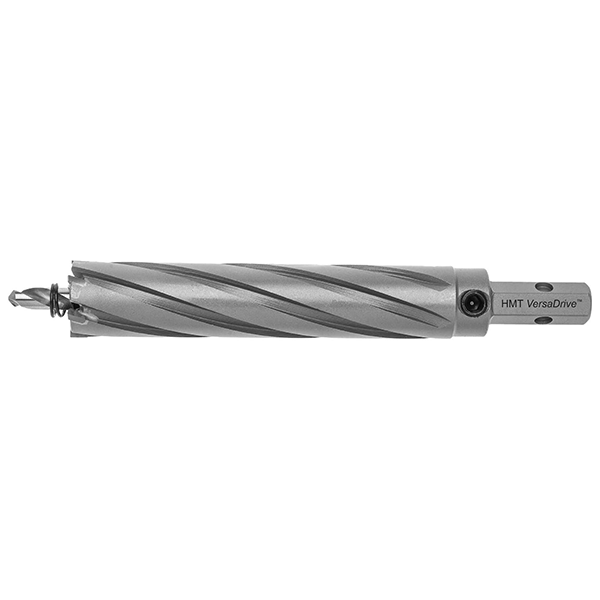

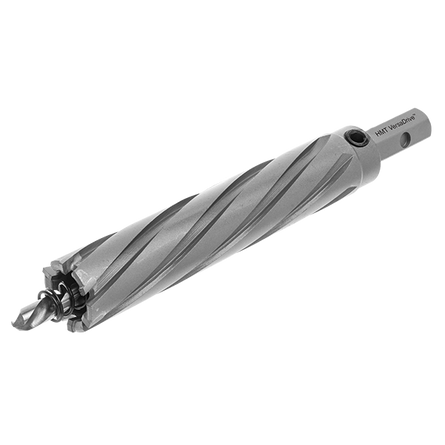

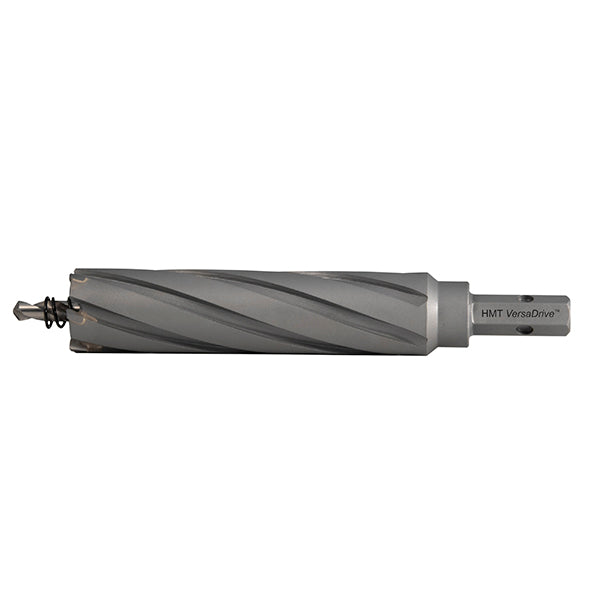

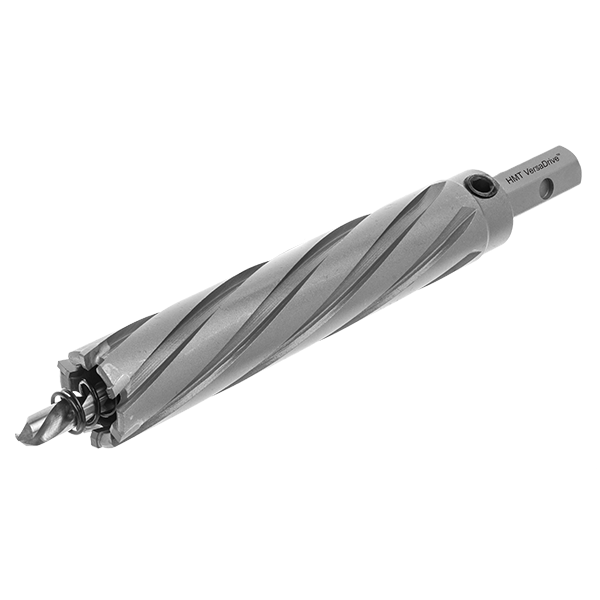

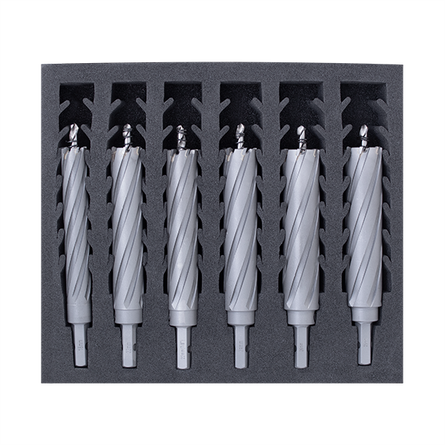

HMT Versadrive TCT Holecutter Extra Long Series 14 x 105mm (9/16") - 101035

£ 148.74 inc VAT

£ 123.95 ex VAT

Description

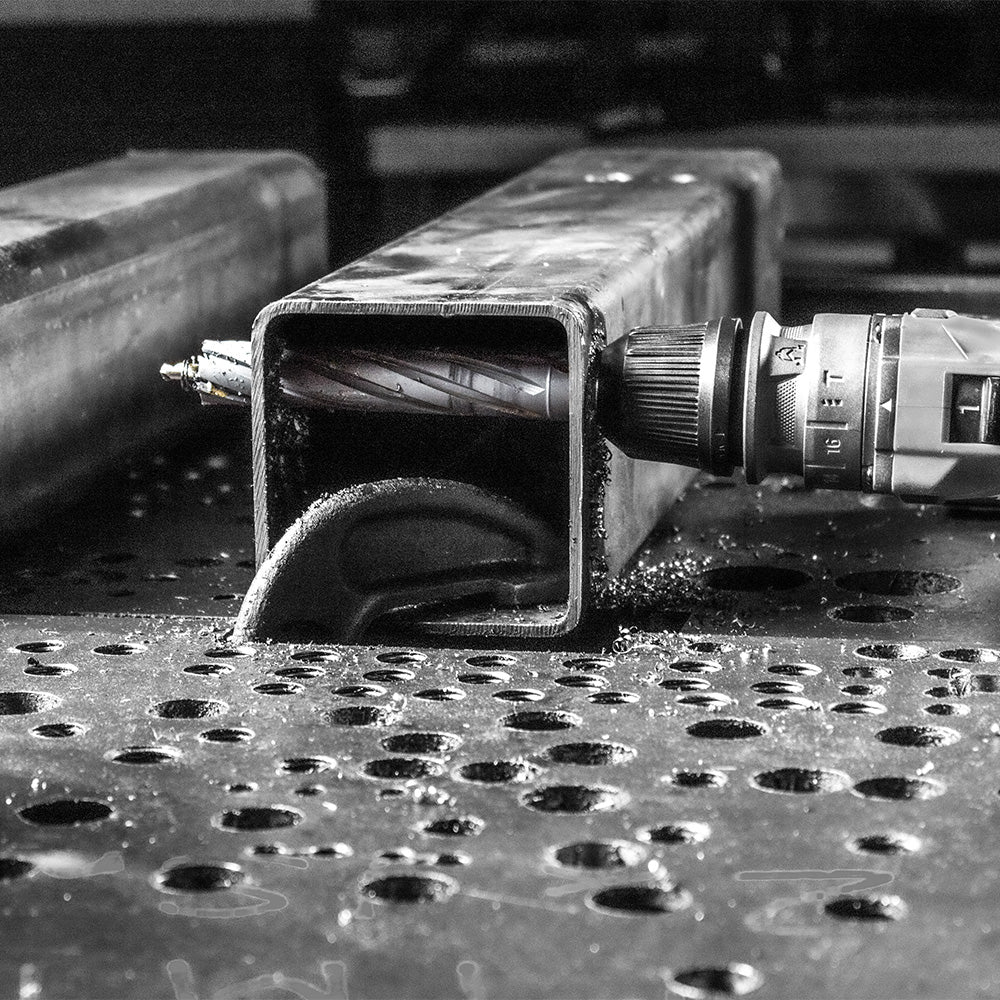

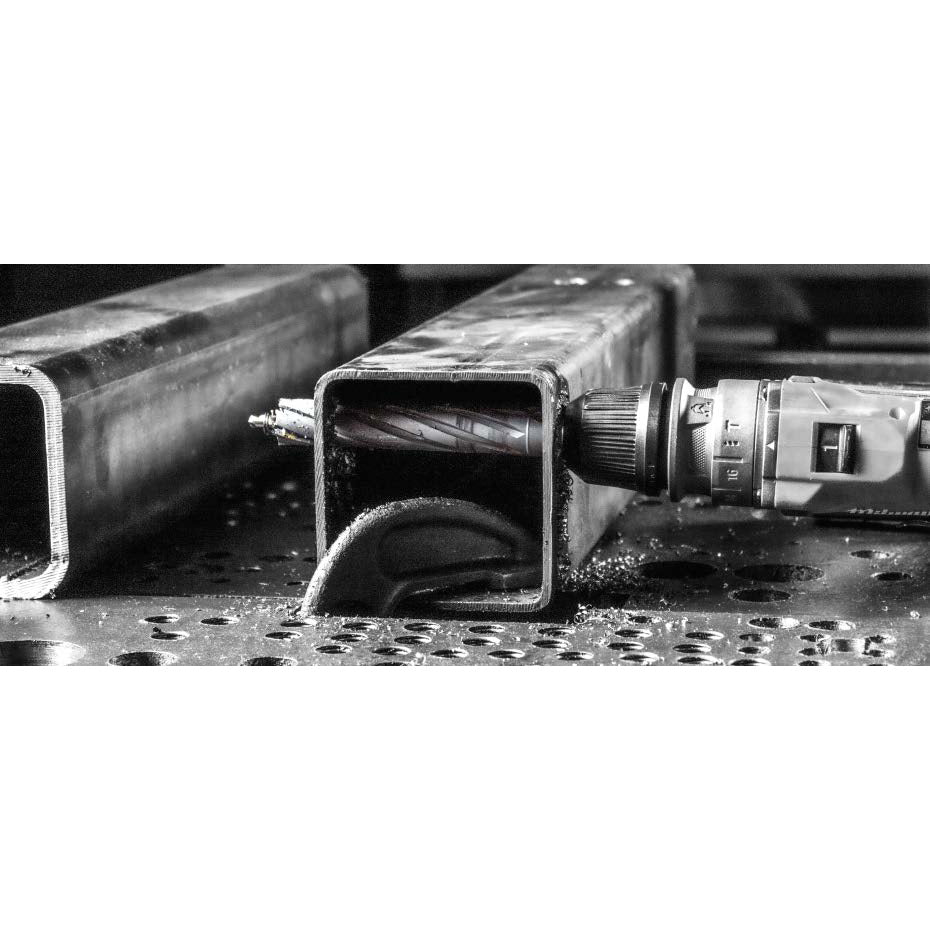

The HMT Versadrive TCT Holecutter Extra Long Series is a professional range of extra-long TCT hole cutters designed for efficient drilling in metal where extended reach is required. Across the range, each cutter features a TCT tipped alloy steel body, grey graphite finish and Versadrive 11mm hex shank for secure drive compatibility. With a 105mm cutting flute length, 149mm overall length and a supplied pilot drill, these cutters are suited to fabrication, installation and maintenance work where clean, reliable hole cutting is essential.

Specifications

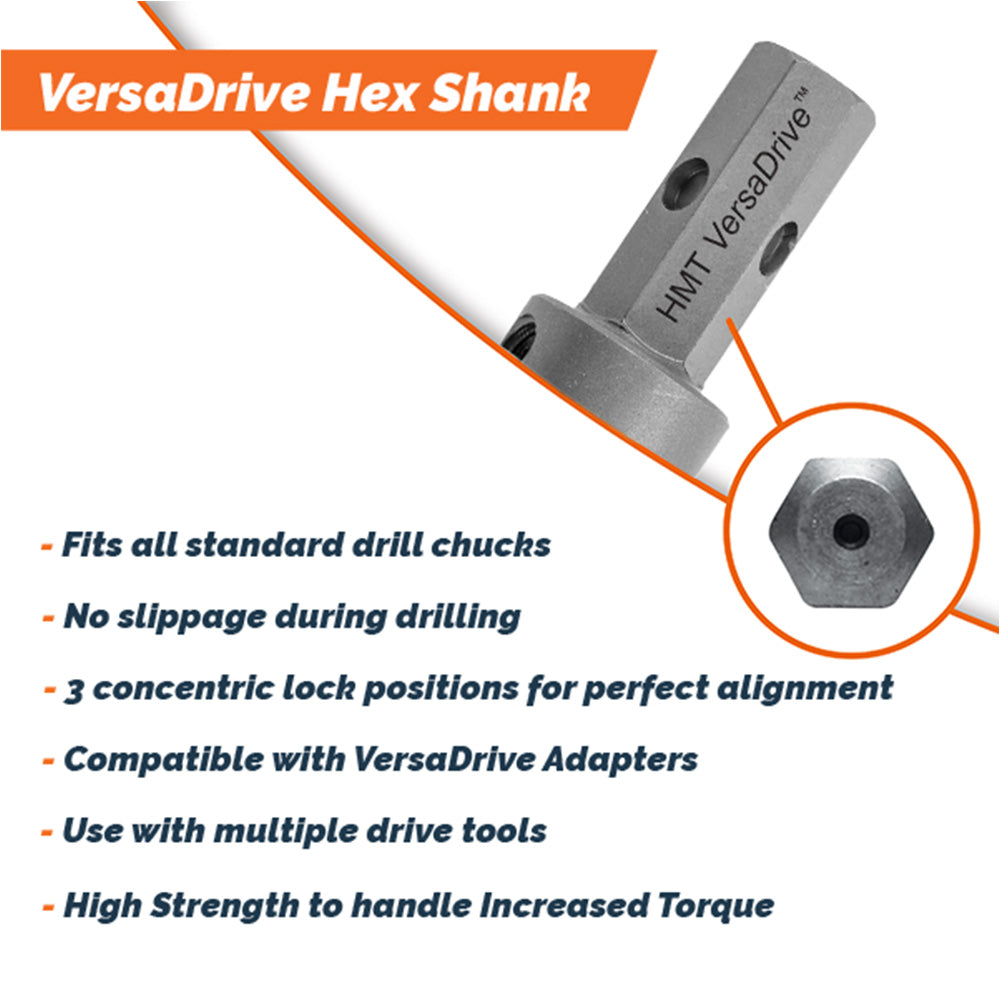

Shank Type Versadrive 11mm Hex Shank
Tool Material TCT Tipped Alloy Steel Body
Tool Finish Grey Graphite Finish
Cutting Flute Length 105mm
Tool Diameter 14mm, 17mm, 18mm, 20mm, 21mm, 22mm, 24mm, 26mm
Total Length (OAL) 149mm
RPM (Structural Steel) 295 RPM, 320 RPM, 345 RPM, 365 RPM, 380 RPM, 425 RPM, 450 RPM, 545 RPM
RPM (Hardened Steel) 100 RPM, 105 RPM, 115 RPM, 120 RPM, 125 RPM, 140 RPM, 150 RPM, 180 RPM
RPM (Stainless Steel) 145 RPM, 160 RPM, 175 RPM, 180 RPM, 190 RPM, 210 RPM, 225 RPM, 275 RPM
RPM (Non-Ferrous) 795 RPM, 860 RPM, 940 RPM, 985 RPM, 1035 RPM, 1150 RPM, 1215 RPM, 1480 RPM
Scope of Delivery 1 pc in reusable plastic box
Additional Information 1 M5 Set Screw retains pilot drill, M6 Set Screw retains pilot drill, M8 Set Screw retains pilot drill
Additional Information 2 Equivalent to 7/8" Diameter, Equivalent to 9/16" Diameter, Equivalent to 11/16" Diameter, Equivalent to 13/16" Diameter, Equivalent to 15/16" Diameter
Additional Information 3 Includes Pilot Drill
Dimensions (LxWxD) 18.6 x 2.4 x 2.4, 18.7 x 3.6 x 3.6

Variants

Part No Tool Diameter RPM (Structural Steel) RPM (Hardened Steel) RPM (Stainless Steel) RPM (Non-Ferrous) Additional Information 1 Dimensions (LxWxD)
101035-0140 14mm 545 RPM 180 RPM 275 RPM 1480 RPM M5 Set Screw retains pilot drill 18.6 x 2.4 x 2.4
101035-0170 17mm 450 RPM 150 RPM 225 RPM 1215 RPM M6 Set Screw retains pilot drill 18.6 x 2.4 x 2.4
101035-0180 18mm 425 RPM 140 RPM 210 RPM 1150 RPM M6 Set Screw retains pilot drill 18.6 x 2.4 x 2.4
101035-0200 20mm 380 RPM 125 RPM 190 RPM 1035 RPM M6 Set Screw retains pilot drill 18.6 x 2.4 x 2.4
101035-0210 21mm 365 RPM 120 RPM 180 RPM 985 RPM M8 Set Screw retains pilot drill 18.6 x 2.4 x 2.4
101035-0220 22mm 345 RPM 115 RPM 175 RPM 940 RPM M8 Set Screw retains pilot drill 18.7 x 3.6 x 3.6
101035-0240 24mm 320 RPM 105 RPM 160 RPM 860 RPM M8 Set Screw retains pilot drill 18.7 x 3.6 x 3.6
101035-0260 26mm 295 RPM 100 RPM 145 RPM 795 RPM M8 Set Screw retains pilot drill 18.7 x 3.6 x 3.6
